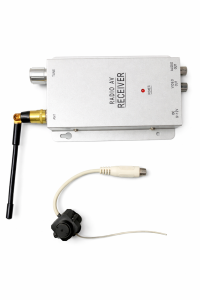

LocoCabCam V1 Analoge
Wow, this is going back along ways, when digital cameras where not available.
But I still got a image from the camera, blury at times with interference as the image was transmitted by raidio and had to be tuned with the reciever.

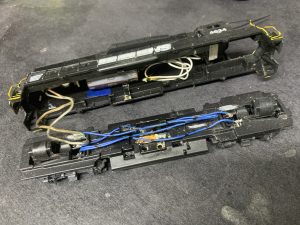

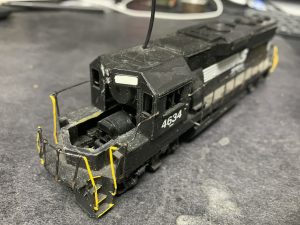

#LocoCabCam v2

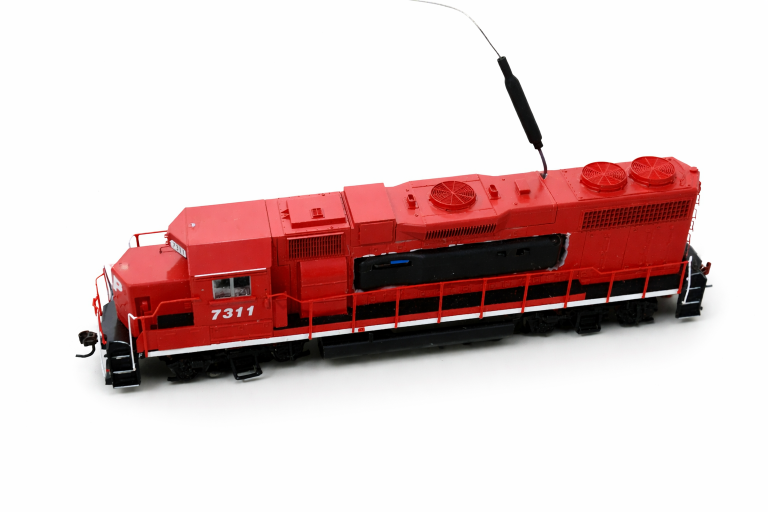

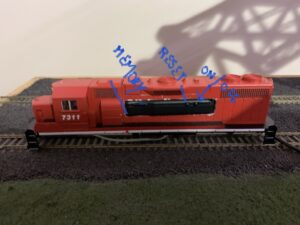

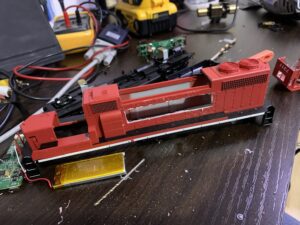

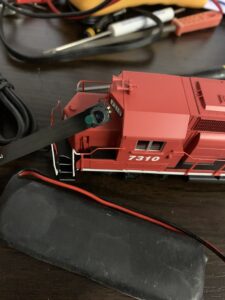

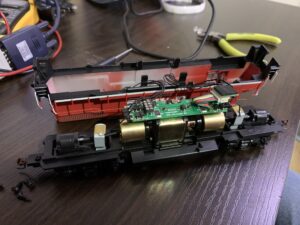

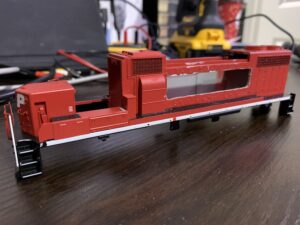

Now this is going back along ways. The search goes out to find a digital camera that is small enought to insert into a locomotive.

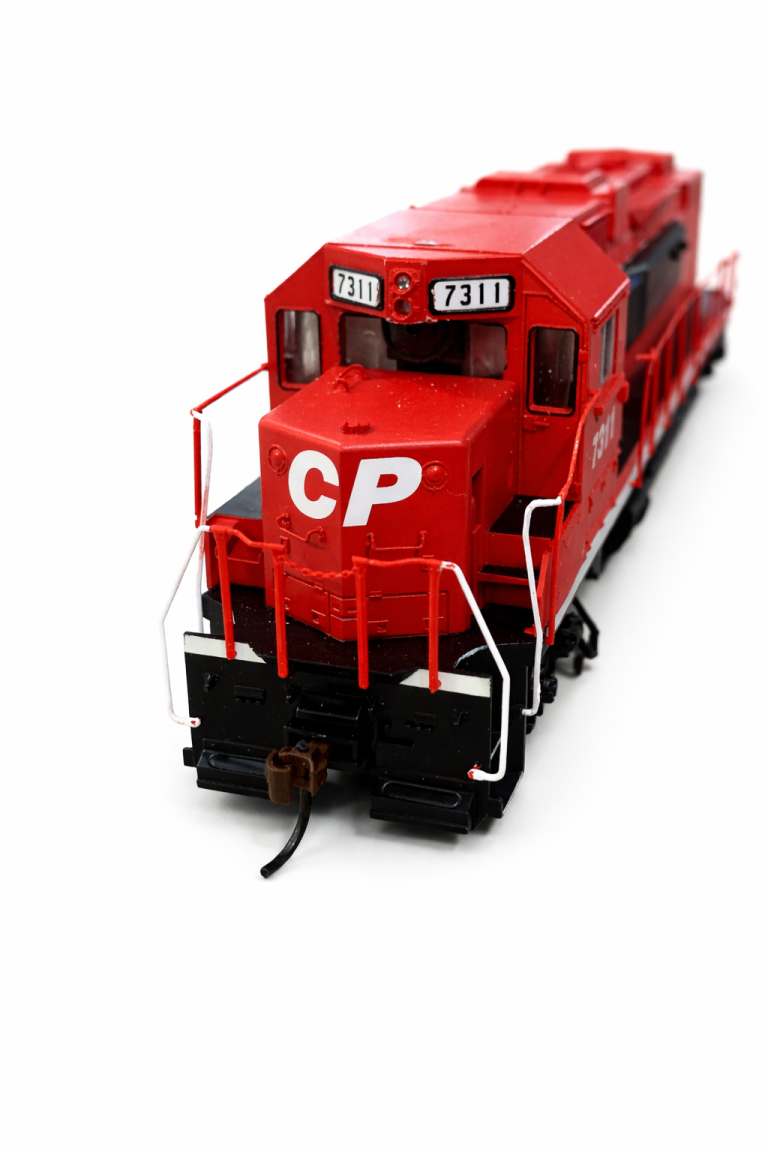

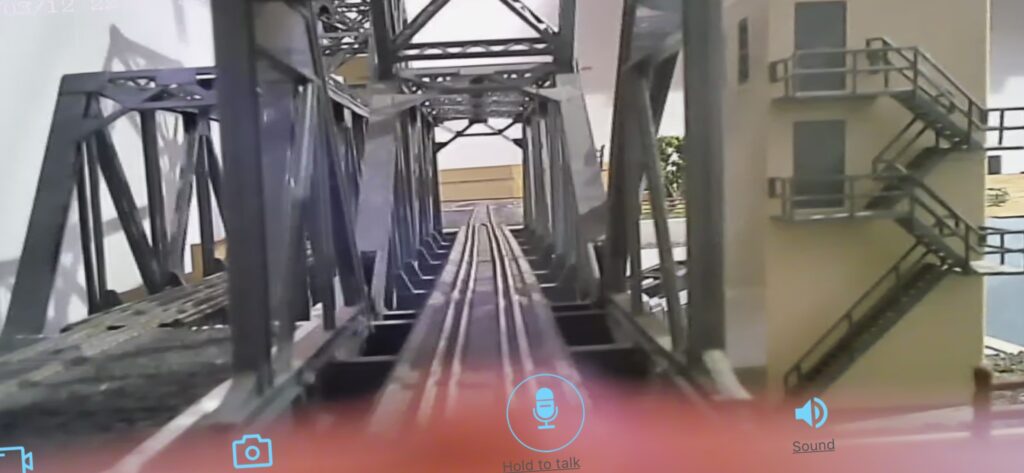

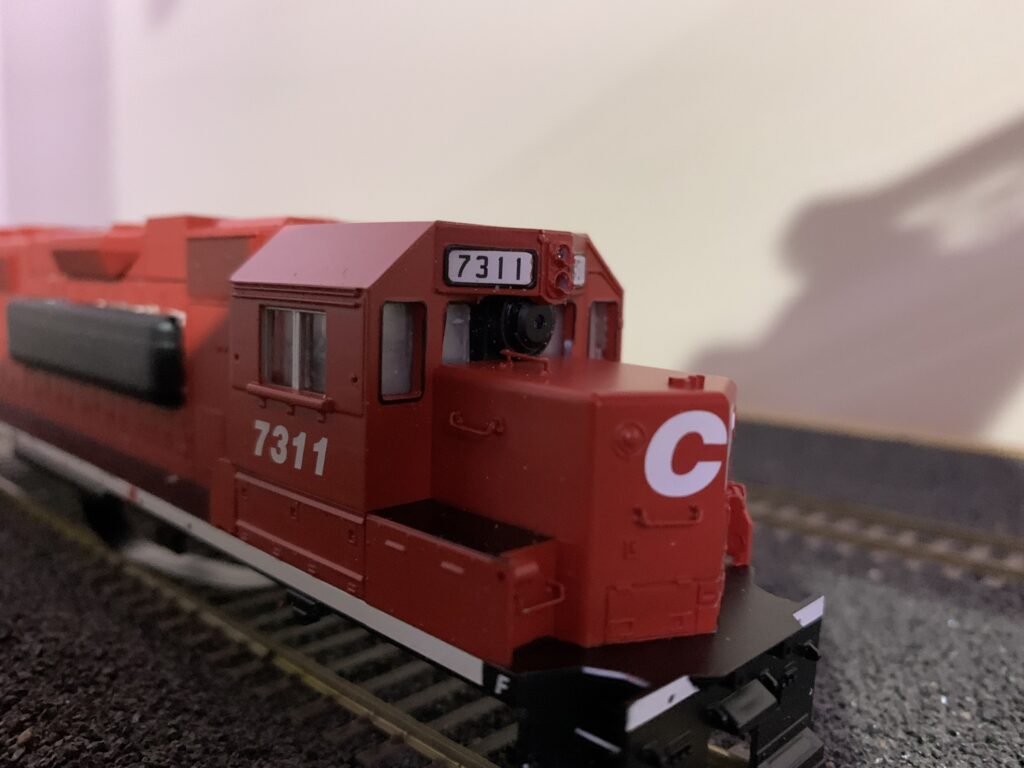

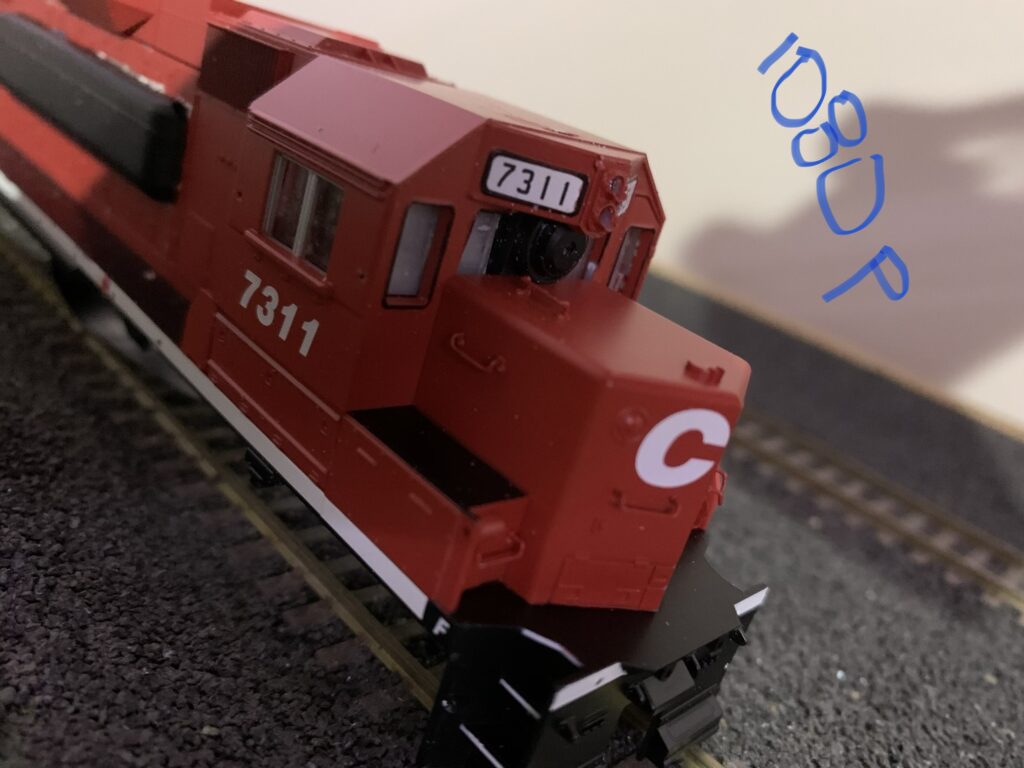

The problem, the lens is in the front window, the red of the nose showd up blury, and the video is only viewable via an application on my iPhone. I wanted a streaming video.
#LocoCabCan v3

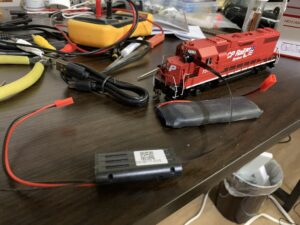

#LocoCabCam WiFi Camera & DVR Module
WiFi Camera with Remote Viewing and Built-In DVR
The LococabCam v3 WiFi Camera & DVR Module is a compact, professional-grade covert surveillance solution designed for custom installations and discreet monitoring applications. This advanced DIY WiFi camera module combines a miniature HD camera, built-in digital video recorder (DVR), and wireless streaming capabilities into a single integrated system.
Designed for flexibility, the module allows installers and developers to embed a hidden WiFi camera system into custom raiil cars, security devices, or specialized monitoring equipment. With Full HD video recording, motion detection, and remote viewing via smartphone, the system provides powerful surveillance capabilities in an ultra-compact design.
Whether used for security monitoring, research projects, or custom rail equipment, the module delivers reliable performance and professional-quality video capture.
Key Features
Full HD Camera Recording
Capture crystal-clear 1080p high-definition video using a miniature CMOS camera sensor designed for covert installations.
Built-In Digital Video Recorder (DVR)
Record video directly to a microSD card, eliminating the need for external recording equipment.
WiFi Remote Viewing
Connect the hidden camera to your smartphone or tablet using 2.4 GHz WiFi, enabling real-time monitoring and remote playback.
Motion Detection Recording
Automatically start recording when motion is detected, helping conserve storage space and making it easier to review important footage.
Loop Recording
The system supports continuous recording by automatically overwriting the oldest files when the microSD card reaches capacity.
Compact DIY Design
The ultra-small circuit board module allows easy integration into custom hardware, security systems, or covert installations.
Mobile App Control
Using the compatible mobile application, users can:
View live video remotely
Start or stop recording
Access stored footage
Download video clips
Configure recording settings
Enable motion detection alerts
Technical Specifications
| Feature | Specification |
|---|---|
| Video Resolution | 1920 × 1080 (Full HD) |
| Video Compression | H.264 |
| Frame Rate | Up to 30 fps |
| Camera Sensor | CMOS Mini Camera |
| Viewing Angle | Approx. 70° – 90° |
| Storage | microSD card (supports up to 128GB) |
| Wireless Connectivity | 2.4 GHz WiFi |
| Recording Modes | Continuous / Motion Detection |
| Video Format | MP4 |
| Power Input | 5V DC |
| Operating Temperature | 0°C – 50°C |
| System Type | DIY Hidden Camera Module with DVR |
Applications
The WiFi camera module is ideal for a wide range of professional and rail custom applications, including:
Custom surveillance systems
Embedded security devices
Covert monitoring installations
Prototype hardware development
Research and testing environments
DIY electronics projects
Its compact design allows integrators to install the camera module into discreet enclosures without compromising video quality or wireless connectivity.
Why Choose the WiFi Camera Module?
This system is designed for professionals who require reliable hidden hardware with flexible integration options. By combining a miniature camera, DVR, and WiFi transmitter in a single module, the system simplifies installation while delivering high-quality video performance.
Key advantages include:
Professional hardware
Compact design for installations
Remote viewing from mobile devices
Reliable digital video recording
Flexible integration
Legal Notice
Users must ensure that all video recording and surveillance activities comply with local privacy laws and regulations. The module is intended for responsible and lawful viewing/monitoring applications.

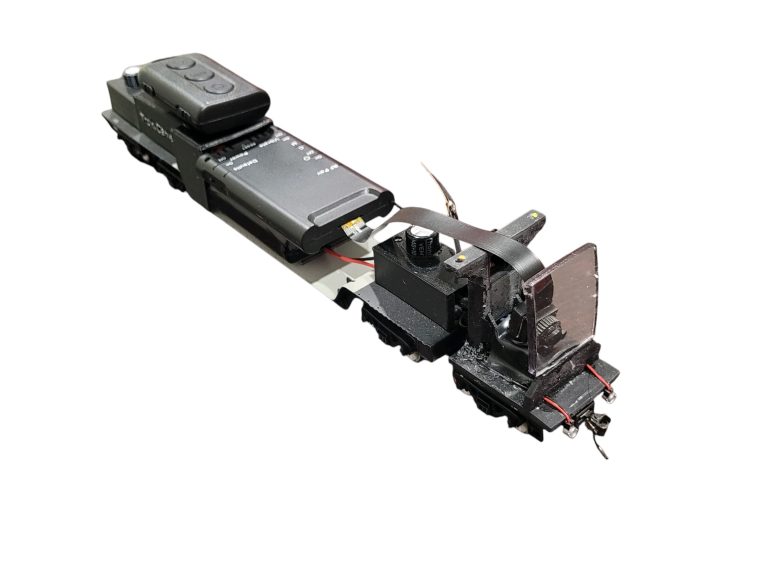

#LocoCabCam v4
#LocoCabCam WiFi Camera & DVR Module
WiFi Camera with Remote Viewing and Built-In DVR
The LococabCam v4 WiFi Camera & DVR Module is a compact, professional-grade solution designed for custom installations and discreet monitoring applications. This advanced DIY WiFi camera module combines a miniature HD camera, built-in digital video recorder (DVR), and wireless streaming capabilities into a single integrated system.
NOTE: this units comes with upgraded Athearn pick-up trucks, and a built in lighting decoder, for headlight and ditch light features.
Designed for flexibility, the module allows installers and developers to embed a hidden WiFi camera system into custom raiil cars, security devices, or specialized monitoring equipment. With Full HD video recording, motion detection, and remote viewing via smartphone, the system provides powerful surveillance capabilities in an ultra-compact design.
Whether used for security monitoring, research projects, or custom rail equipment, the module delivers reliable performance and professional-quality video capture.
Key Features
Full HD Camera Recording
Capture crystal-clear 1080p high-definition video using a miniature CMOS camera sensor designed for covert installations.
Built-In Digital Video Recorder (DVR)
Record video directly to a microSD card, eliminating the need for external recording equipment.
WiFi Remote Viewing
Connect the hidden camera to your smartphone or tablet using 2.4 GHz WiFi, enabling real-time monitoring and remote playback.
Motion Detection Recording
Automatically start recording when motion is detected, helping conserve storage space and making it easier to review important footage.
Loop Recording
The system supports continuous recording by automatically overwriting the oldest files when the microSD card reaches capacity.
Compact DIY Design
The ultra-small circuit board module allows easy integration into custom hardware, security systems, or covert installations.
Mobile App Control
Using the compatible mobile application, users can:
View live video remotely
Start or stop recording
Access stored footage
Download video clips
Configure recording settings
Enable motion detection alerts
Technical Specifications
| Feature | Specification |
|---|---|
| Video Resolution | 1920 × 1080 (Full HD) |
| Video Compression | H.264 |
| Frame Rate | Up to 30 fps |
| Camera Sensor | CMOS Mini Camera |
| Viewing Angle | Approx. 70° – 90° |
| Storage | microSD card (supports up to 128GB) |
| Wireless Connectivity | 2.4 GHz WiFi |
| Recording Modes | Continuous / Motion Detection |
| Video Format | MP4 |
| Power Input | 5V DC |
| Operating Temperature | 0°C – 50°C |
| System Type | DIY Hidden Camera Module with DVR |
Applications
The WiFi camera module is ideal for a wide range of professional and rail custom applications, including:
Custom surveillance systems
Embedded security devices
Covert monitoring installations
Prototype hardware development
Research and testing environments
DIY electronics projects
Its compact design allows integrators to install the camera module into discreet enclosures without compromising video quality or wireless connectivity.
Why Choose the WiFi Camera Module?
This system is designed for professionals who require reliable hidden hardware with flexible integration options. By combining a miniature camera, DVR, and WiFi transmitter in a single module, the system simplifies installation while delivering high-quality video performance.
Key advantages include:
Professional hardware
Compact design for installations
Remote viewing from mobile devices
Reliable digital video recording
Flexible integration
Legal Notice
Users must ensure that all video recording and surveillance activities comply with local privacy laws and regulations. The module is intended for responsible and lawful viewing/monitoring applications.

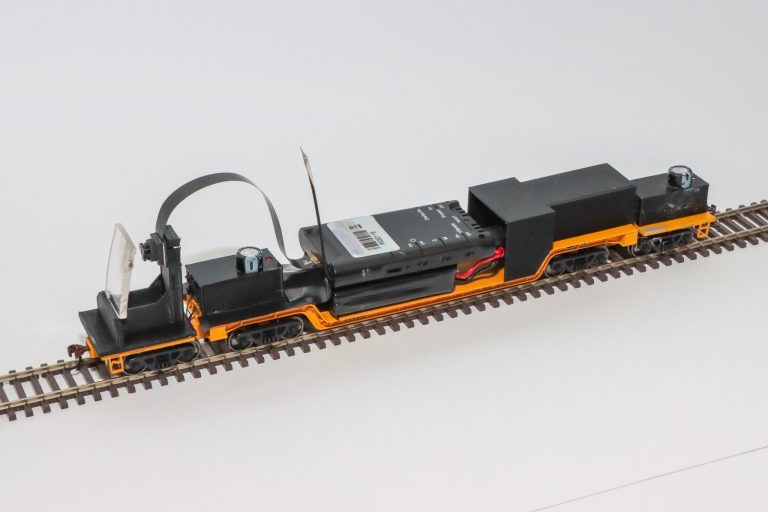

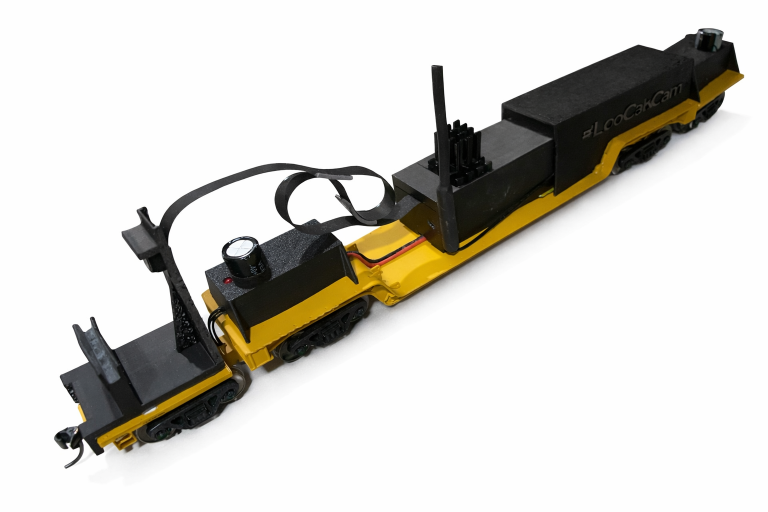

#LocoCabCam v5 RTSP
#LocoCabCam™ V5
HO Scale Engineer View Camera System
The #LocoCabCam™ V6 is the latest onboard locomotive camera system developed by Canadian Locomotive Logistics. Designed to deliver a true engineer’s-eye view from the track, the system streams smooth high-definition video while operating directly from DCC track power.
This new version introduces a 720p HD camera operating at 25 frames per second, improved Atheron pickup trucks, and an integrated lithium battery power buffer that ensures uninterrupted operation across dirty or inconsistent track conditions.
Key Features
HD Onboard Video
720p HD resolution (1280 × 720)
25 frames per second
Smooth real-time video streaming
Wide field of view for immersive layout viewing
Lithium Power Buffer System
Integrated 800 mAh lithium battery
Provides power smoothing across dirty track
Prevents video interruption or system resets
Automatically charged from DCC rails
Reliable Track Pickup
Equipped with Atheron pickup trucks
Improved electrical contact
Better performance over switches and crossings
Direct Track Power Operation
Powered from DCC track voltage
Onboard rectifier and voltage regulation
Automatic battery charging circuit
Wireless Streaming
RTSP video streaming
Compatible with:
JMRI
Web-based throttle interfaces
RTSP media players
Custom railroad dashboards

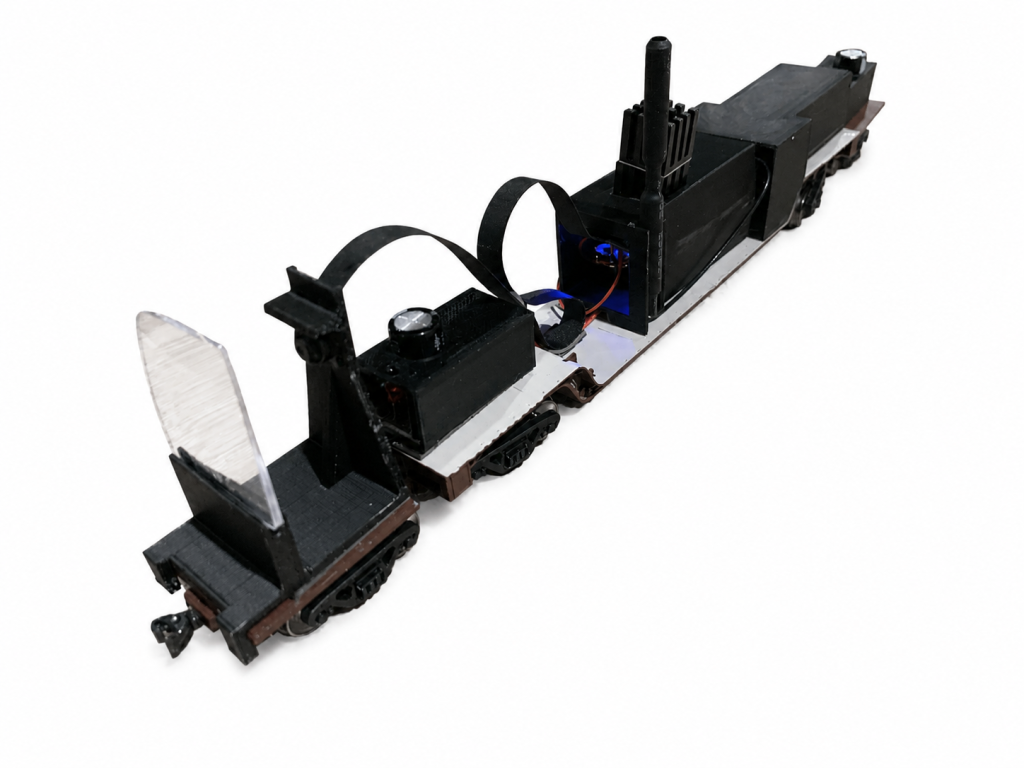

Compact HO Scale Design
Designed for HO scale flatcar installation
Balanced weight distribution
Maintains reliable rolling characteristics
Technical Specifications
| Feature | Specification |
|---|---|
| Camera Resolution | 1280 × 720 (HD) |
| Frame Rate | 25 FPS |
| Streaming Protocol | RTSP |
| Power Source | DCC Track Power |
| Battery | 800 mAh Lithium |
| Battery Charging | Automatic from DCC rails |
| Power Regulation | Onboard |
| Pickup Trucks | Atheron |
| Scale | HO |
| Mounting Platform | Flatcar chassis |
| Control Integration | JMRI compatible |
Advantages
✔ Smooth video even on dirty track
✔ No external batteries required
✔ Continuous operation with automatic charging
✔ Easy integration with model railroad control systems
